Machine specifications

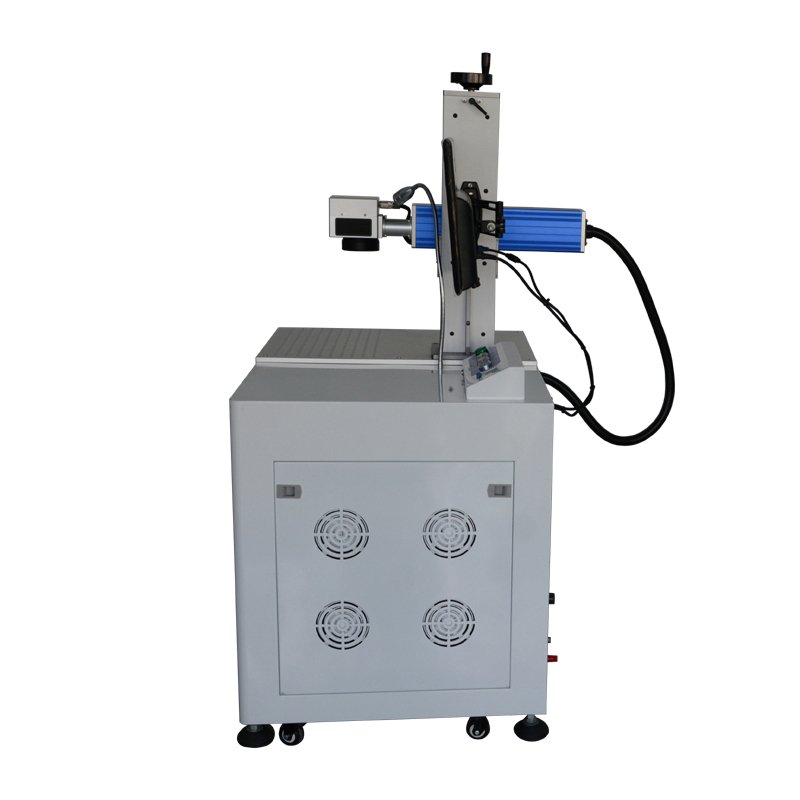

Fiber laser marking machines use laser beams to permanently mark the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "engrave" traces through the chemical and physical changes of the surface material caused by light energy, or to burn off part of the material through light energy, showing the required etching. Patterns, texts,barcodes and other graphics. The so-called fiber laser marking machine refers to the use of fiber lasers. Fiber lasers have small size (no water cooling device, air cooling) and good beam quality (fundamental mode). ), maintenance-free.
Applications:
Widely used in industries such as integrated circuits, molds, microelectronics, aerospace, automotive parts, home appliances, jewelry, medical equipment, and military products for engraving text, graphics, barcodes, and more.
Technical Specifications:
- Laser Power: 20W/30W/50W/100W
- Spot Diameter: 7 ± 1 mm
- Marking Speed: ≤15,000 mm/s (material-dependent)
- Resolution: Up to 2540 dpi
- Cooling Method: Air cooling
- Dimensions: 650 mm × 880 mm × 1420 mm
Environmental Requirements:
- Operating Temperature: 10°C - 35°C
- Humidity: 30% ≤ RH ≤ 85%
- Power Supply: 220V, 50/60Hz
Maintenance:
Regular cleaning and inspection, with a focus on dust removal and power control (keep usage below 90%). Use pure or distilled water for cooling, and replace water every 30 days.
Safety Precautions:
Follow all operational guidelines to prevent damage or accidents.
Wear protective goggles and avoid direct or reflected laser beams.
Ensure a dust-free and vibration-free operating environment.
Brand Overview
Shenzhen Dapeng Laser Technology Co., Ltd., founded in 2011, is a national high-tech enterprise specializing in laser process research, equipment design, manufacturing, sales, and technical support services. With a customer-centric approach, Dapeng Laser consistently delivers high-quality, diversified laser products and customized solutions.
Applications
Widely used in industries such as:
- Integrated circuit chips
- Molds and precision instruments
- Computer components
- Aerospace and automotive parts
- Jewelry, medical equipment, and packaging
Software Capabilities
- Compatible with AutoCAD, CorelDRAW, Photoshop, and other software.
- Supports BMP, JPG, DXF, PLT, AI file formats.
- Generates serial numbers, production dates, barcodes, and QR codes automatically.
- Enables rotary and flying marking.
Technical Highlights
- Laser Source: High-peak power pulsed fiber laser with a maximum peak power of 7kW.
- Galvanometer: High-speed scanning system ensuring low drift and high precision.
- Lens: F-theta scanning lens for uniform focus across the marking area.
- Controller: Industrial PC with Intel Core i3 processor and 8GB RAM, ensuring stable and efficient operation.
After-Sales Services
- One-year warranty covering parts and labor.
- Lifetime maintenance with technical support.
- On-site installation, commissioning, and operator training.
- Software upgrades and spare parts supply.
